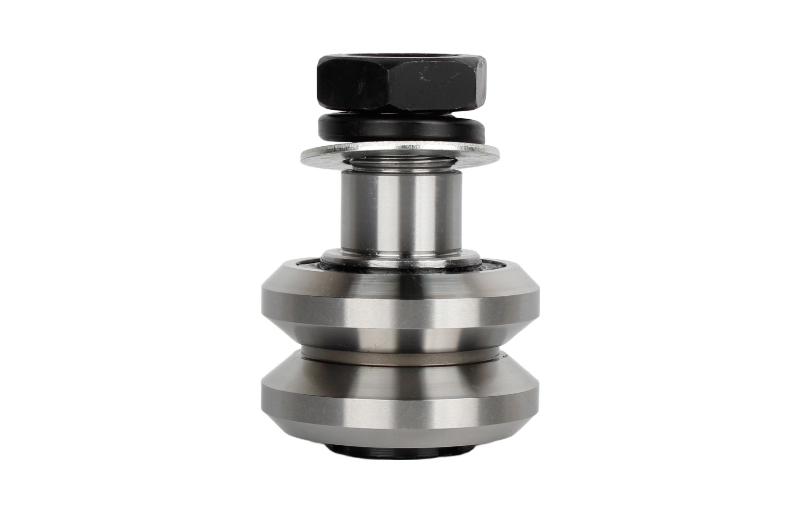

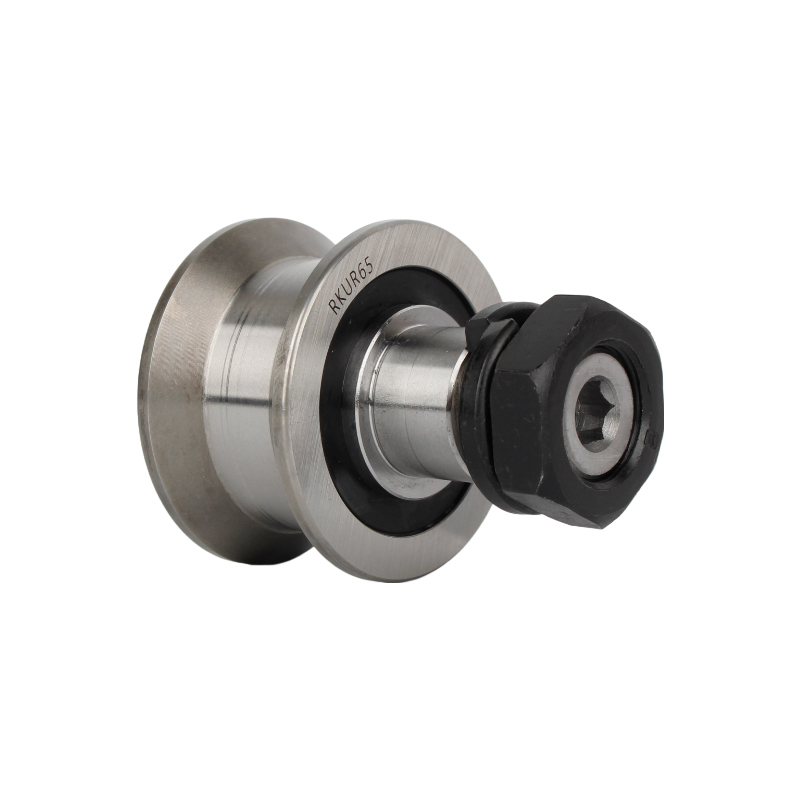

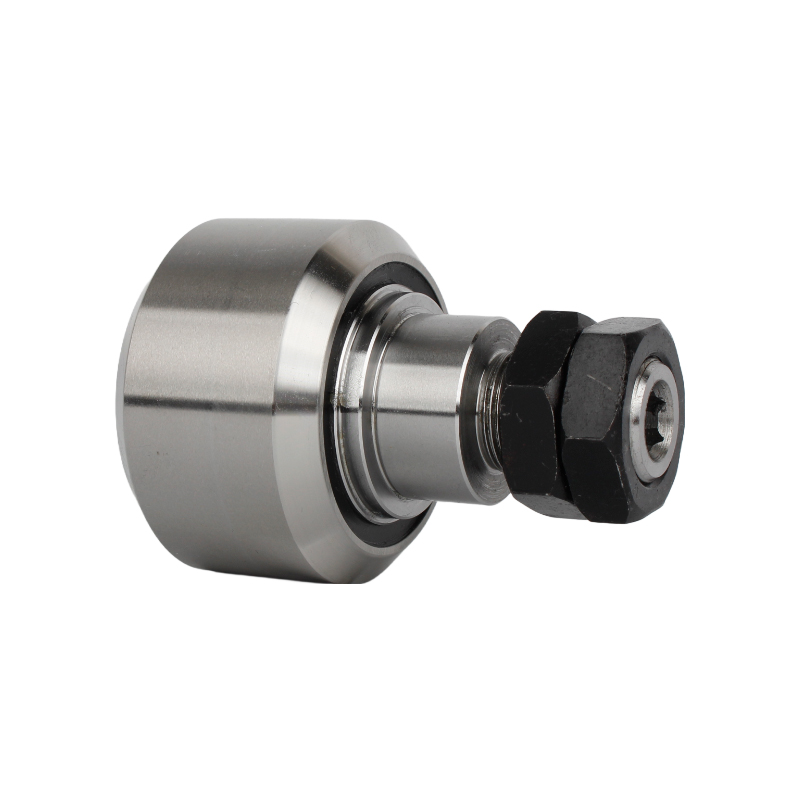

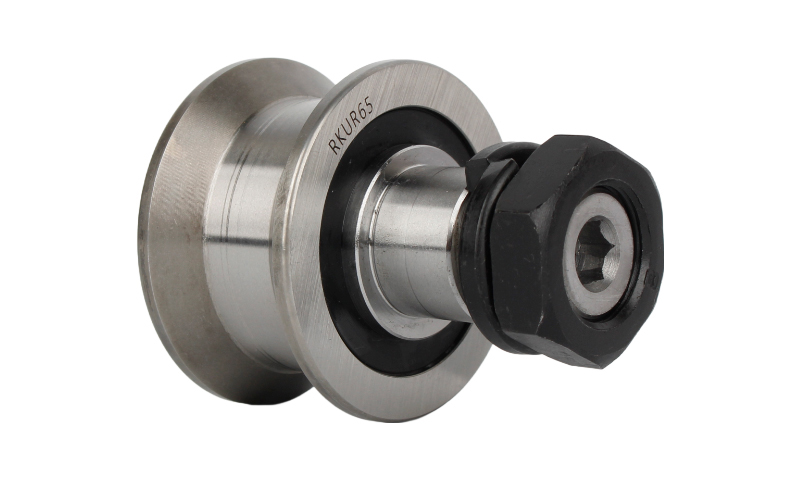

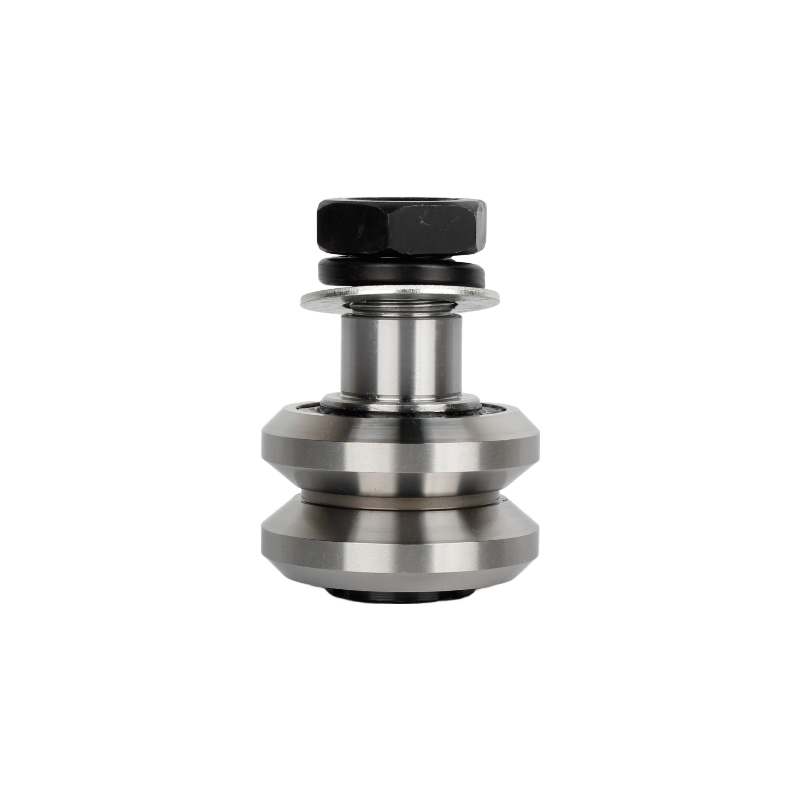

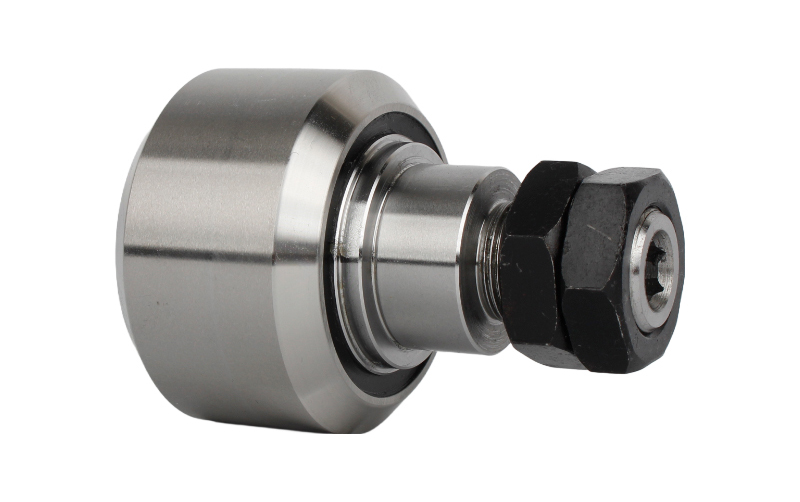

What is a Guide Rail Roller？
A guide roller, also commonly referred to as a track roller or cam follower, is a specially designed bearing component. Its key feature is an outer ring with a specific profile that can precisely engage with various types of rails (such as square, diamond, or serrated profiles) to achieve high-precision linear or curved motion.
A typical guide roller system consists primarily of two parts:
The Roller Itself: Usually comprises an outer ring made of high-strength bearing steel, internal rolling elements (needle or ball rollers), a cage, and seals.
The Rail: A precision-machined profile upon which the roller travels.
What is the function of the guide rail roller?
1、Guidance and Load Capacity:
This is the core function. It ensures that moving components (such as slides, doors, lifting mechanisms, etc.) move precisely along a predetermined path, preventing deviation, jamming, or wobbling. Simultaneously, it can withstand loads from various directions, including radial, axial loads, and even overturning moments.
2、Reduce Friction:
By replacing sliding friction with rolling friction, it significantly reduces motion resistance, allowing for smoother and easier movement, thereby reducing the required drive power.
3、Improve Precision and Rigidity:
The precise fit between the roller and the rail provides very high motion repeatability positioning accuracy and system rigidity, which is crucial for automation equipment requiring precise control.
4、Withstand Harsh Environments:
Many guide rollers are equipped with seals that effectively prevent contaminants like dust, debris, and cutting fluid from entering the internal components, enhancing service life and reliability. Some are made from stainless steel or have special coatings for use in damp, corrosive, or cleanroom environments.
5、Simplify Design:
Compared to traditional sliding guides, roller guide systems are often easier to install and adjust, and can sometimes accommodate certain installation tolerances, reducing the demands on mechanical design and machining.
What are the application areas of guide rail rollers?
1、Industrial Automation and Robotics:
Robot 7th Axis (Earth Rail): Allows robots to move along long tracks, expanding their working range.
Automated Production Lines: Used for precise movement in material handling, transportation, assembly, and inspection stations.
Gantry Robots: Serve as the core motion component for gantry manipulators.
Joints of articulated robots.
2、Logistics and Conveying Systems:
Horizontal and vertical movement of warehouse stacker cranes.
Guidance devices for sorters and lifters.
Automatic doors and shuttle cars in large warehouses.
3、Medical and Laboratory Equipment:
Imaging Equipment: Such as sliding doors and patient table movement in CT scanners and MRI (Magnetic Resonance Imaging) machines.
Automated analyzers, sample handling systems.
Precision motion mechanisms in surgical robots.
4、Special Vehicles and Door Systems:
Aerospace: Movement of aircraft doors, cargo holds, and maintenance platforms.
Automotive Manufacturing: Movement of tool carts and large fixtures on production lines.
Heavy-duty Sliding Doors: Such as hangar doors, fire shutters, and large warehouse doors.
5、Other Fields:
Food Packaging Machinery: Requires corrosion resistance and easy cleaning.
Woodworking Machinery: Such as CNC engraving machines and cutting machines.
Entertainment Facilities: Motion control for stage lifts and amusement ride systems.
Frequently Asked Questions
1、The guide rail roller does not run smoothly
Possible reasons: uneven guide rails, damaged rollers, and insufficient lubrication.
Solution: Check the condition of the guide rails and rollers, clean and lubricate them.
2、The roller wears out too quickly
Possible reasons: excessive load, insufficient lubrication, and harsh working environment.
Solution: Adjust the load, increase lubrication frequency, and improve the working environment.
3、Excessive roller noise
Possible reasons: damaged bearings, improper clearance between rollers and guide rails.
Solution: Replace the bearing and adjust the gap between the roller and the guide rail.
4、Roller stuck
Possible reasons: Foreign objects entering the interior of the roller, damaged bearings.
Solution: Clean the roller and replace the bearing.
5、The service life of the roller is short
Possible reasons: improper selection, harsh operating environment, and inadequate maintenance.
Solution: Choose the appropriate roller model according to actual needs and strengthen maintenance.
