High Precision Cutting
Utilizes fiber laser technology for exceptional accuracy, with cutting tolerances as low as ±0.1mm.
Ideal for intricate designs and complex geometries.

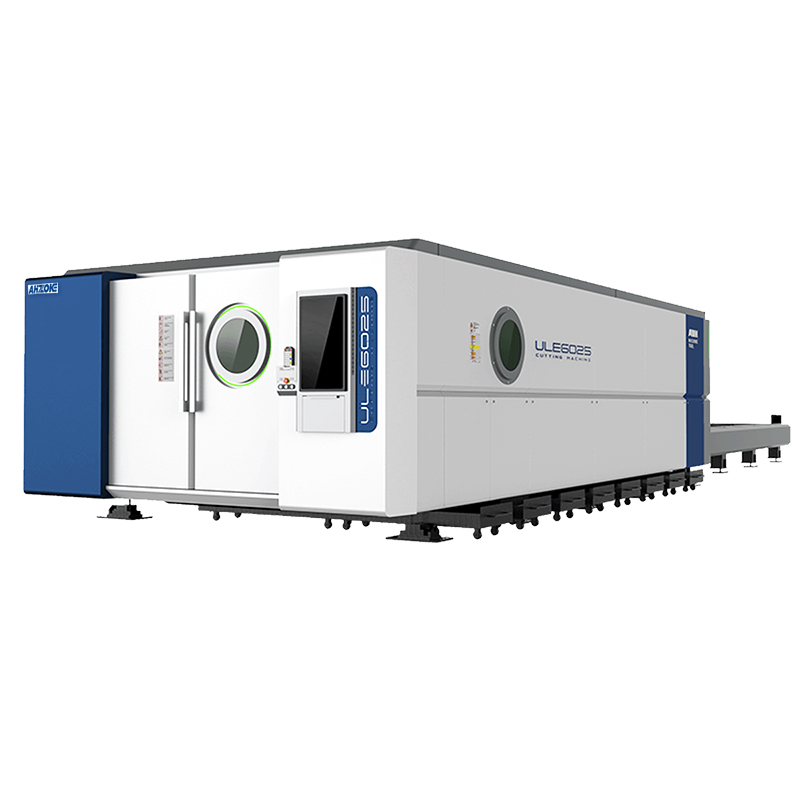

Dual-Table System
Features two interchangeable cutting tables, allowing for continuous operation.
While one table is being processed, the other can be loaded or unloaded, significantly reducing idle time.
High Speed and Efficiency
Cutting speeds of up to 100 meters per minute, depending on material thickness.
Optimized for mass production and high-volume orders.
Wide Material Compatibility
Capable of cutting various metals, including stainless steel (up to 25mm), carbon steel (up to 30mm), aluminum (up to 20mm), and copper (up to 15mm).
Automatic Focus Adjustment
Automatically adjusts the focal length based on material thickness, ensuring consistent cutting quality.
Safety Features
Includes protective enclosures, emergency stop buttons, and automatic shutdown in case of malfunctions.
Application field
Automotive: Cutting chassis components, body panels, and exhaust systems.
Aerospace: Precision cutting of lightweight alloys and structural parts.
Construction: Fabrication of steel beams, panels, and architectural elements.
Electronics: Cutting metal components for devices and machinery.
Signage and Decoration: Creating intricate designs for metal signs, artwork, and decorative pieces.
Usage Instructions
Preparation
Ensure the machine is properly installed and leveled.
Check the power supply and cooling system.
Material Loading
Place the material on one of the cutting tables, ensuring it is flat and secure.
Programming
Use the CNC control panel or CAD/CAM software to input the cutting design and parameters.
Cutting Process
Start the machine and monitor the cutting process.
Switch to the second table for continuous operation.
Maintenance
Regularly clean the lens, nozzles, and cutting tables.
Check and replace consumables as needed.
Common Issues and Troubleshooting
Poor Cutting Quality
Cause: Incorrect focal length or worn-out nozzles.
Solution: Adjust the focal length or replace the nozzle.
Machine Not Starting
Cause: Power supply issues or emergency stop activated.
Solution: Check the power connection and reset the emergency stop button.
Overheating
Cause: Cooling system malfunction or blocked ventilation.
Solution: Inspect and clean the cooling system.
Inconsistent Cutting Speed
Cause: Improper parameter settings or material thickness variation.
Solution: Adjust the cutting parameters or ensure uniform material thickness.

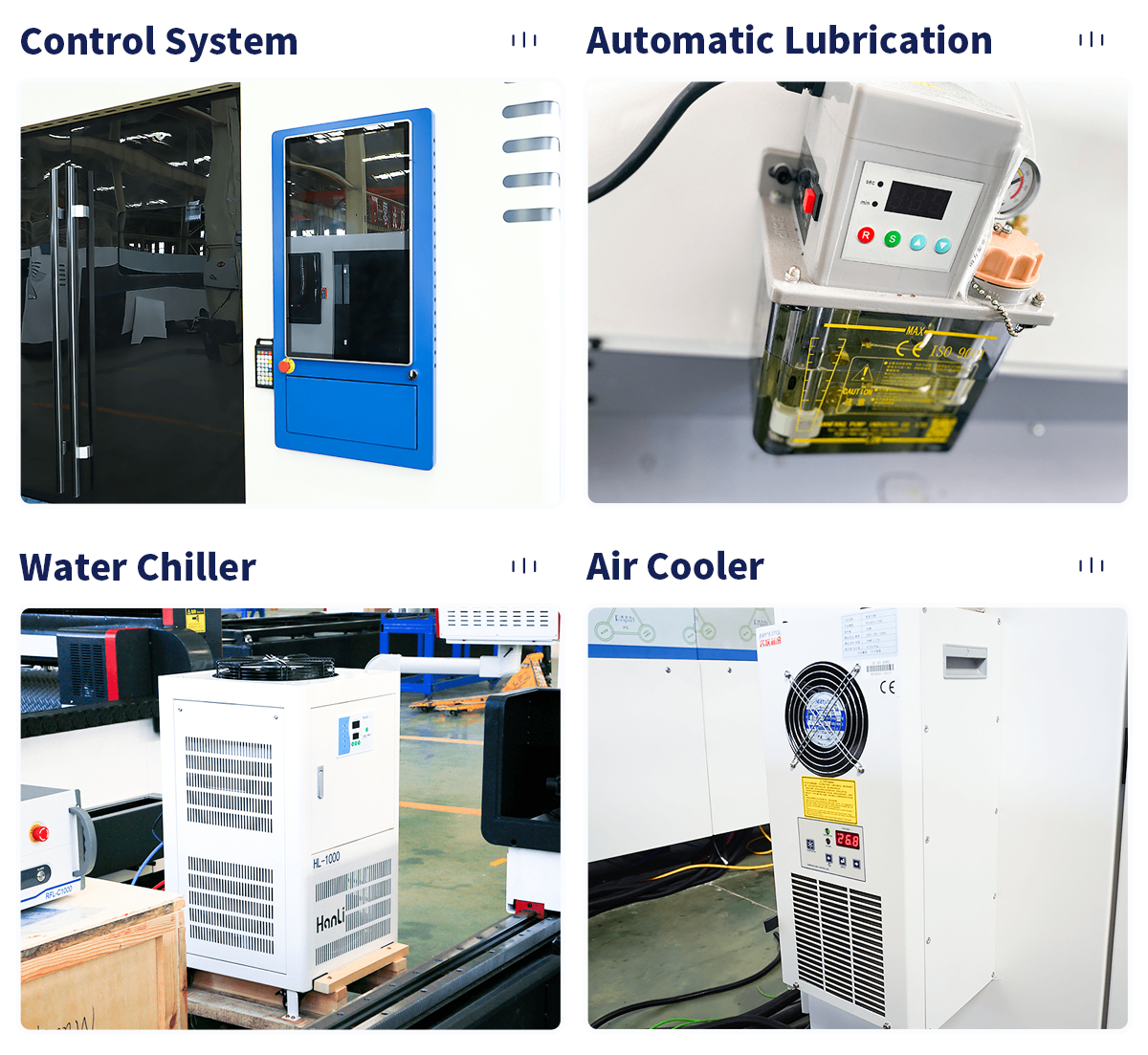

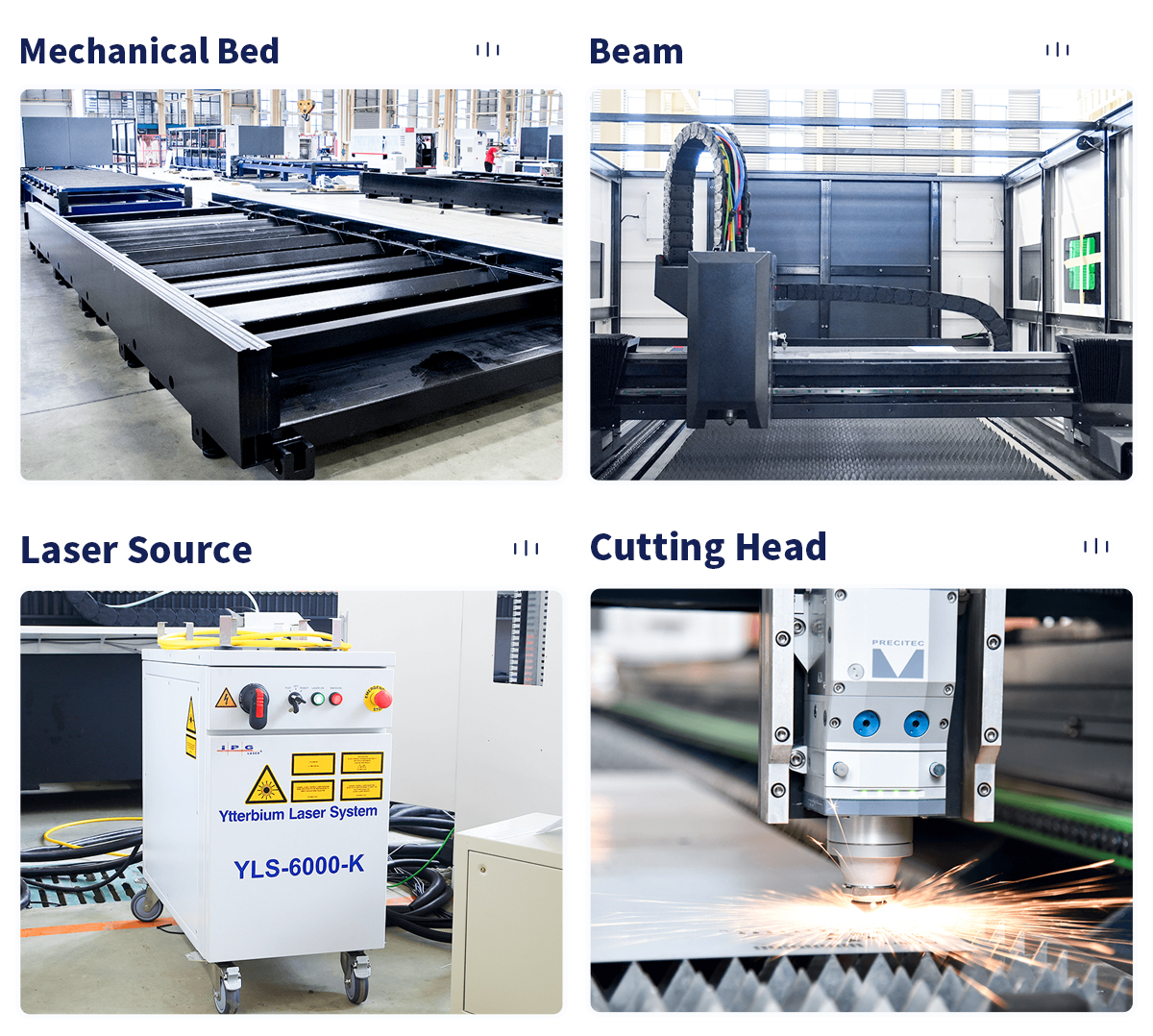

Product details

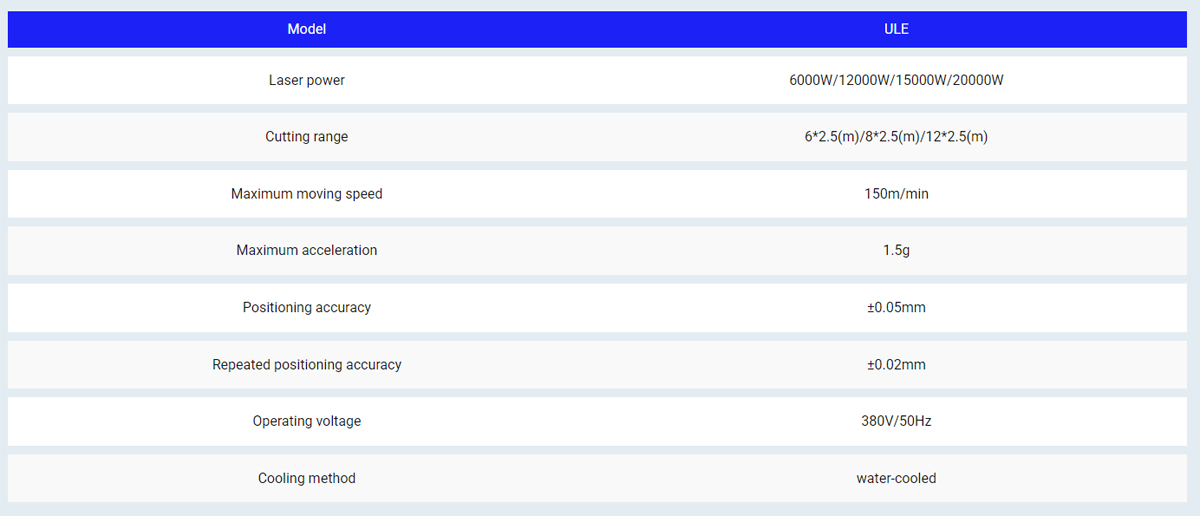

parameter
